OAuth

Using PlanetScale OAuth enables your users to connect their accounts to PlanetScale.

Overview

Creating an OAuth application within PlanetScale allows your application to access your users’ PlanetScale accounts.

With PlanetScale OAuth applications, you can choose what access your application needs, and a user will allow (or deny) your application those accesses on their PlanetScale account. The organization that you create the OAuth application in is the “owner” of the application.

Getting started

1. Creating an OAuth application in PlanetScale

1. To create a new OAuth application, log into your organization and click Settings > OAuth applications.
2. Create a new OAuth application by clicking Create new application.
3. You will need to fill out the following fields:

• Name: A user-friendly name for your OAuth application.
• Domain: The full URL to your application’s domain.
• Redirect URI: The full URL PlanetScale should redirect users on completion of the authorization flow, also known as the callback URL. It must have the same domain as the domain above.
• Avatar: An image that represents your OAuth application. (Optional but recommended.)

You will also be agreeing, on behalf of your organization, to prominently display a privacy policy and obtain consent to your organization’s terms of use from all users of your products and services.

2. Credentials to copy to your application code

Once you have created your OAuth application in PlanetScale, you will need the following credentials to use the OAuth authorization flow:

• ID: Your OAuth application’s ID.
• Client ID: Your OAuth application’s client ID.
• Redirect URL: The full URL PlanetScale should redirect users on completion of the authorization flow, also known as the callback URL.
• Client secret: Your OAuth application’s client secret, used to exchange authorization codes for access tokens. (This will only be shown once, make sure to save it!)

Later in this document, we will go through how you use each of these credentials. We recommend saving them as environment variables.

3. OAuth application access scopes

Every OAuth application in PlanetScale will request from its users a specific set of permissions in the users’ databases. We call these permissions “access scopes.” They are broken into:

• User access
• Organization access
• Database access
• Branch access

Access is scoped to a resource. For example, selecting write_branches on an organization allows you to write branches across all databases in organizations the user gives permission to, while write_branches on a database enables you to only write branches in databases the user gives permission to.

The API reference for each endpoint will say what scope is needed.

In this step, select the access scopes you think your application will need on a user’s account and click the Save access scopes button.

View OAuth access scopes documentation

OAuth Authorization Flow

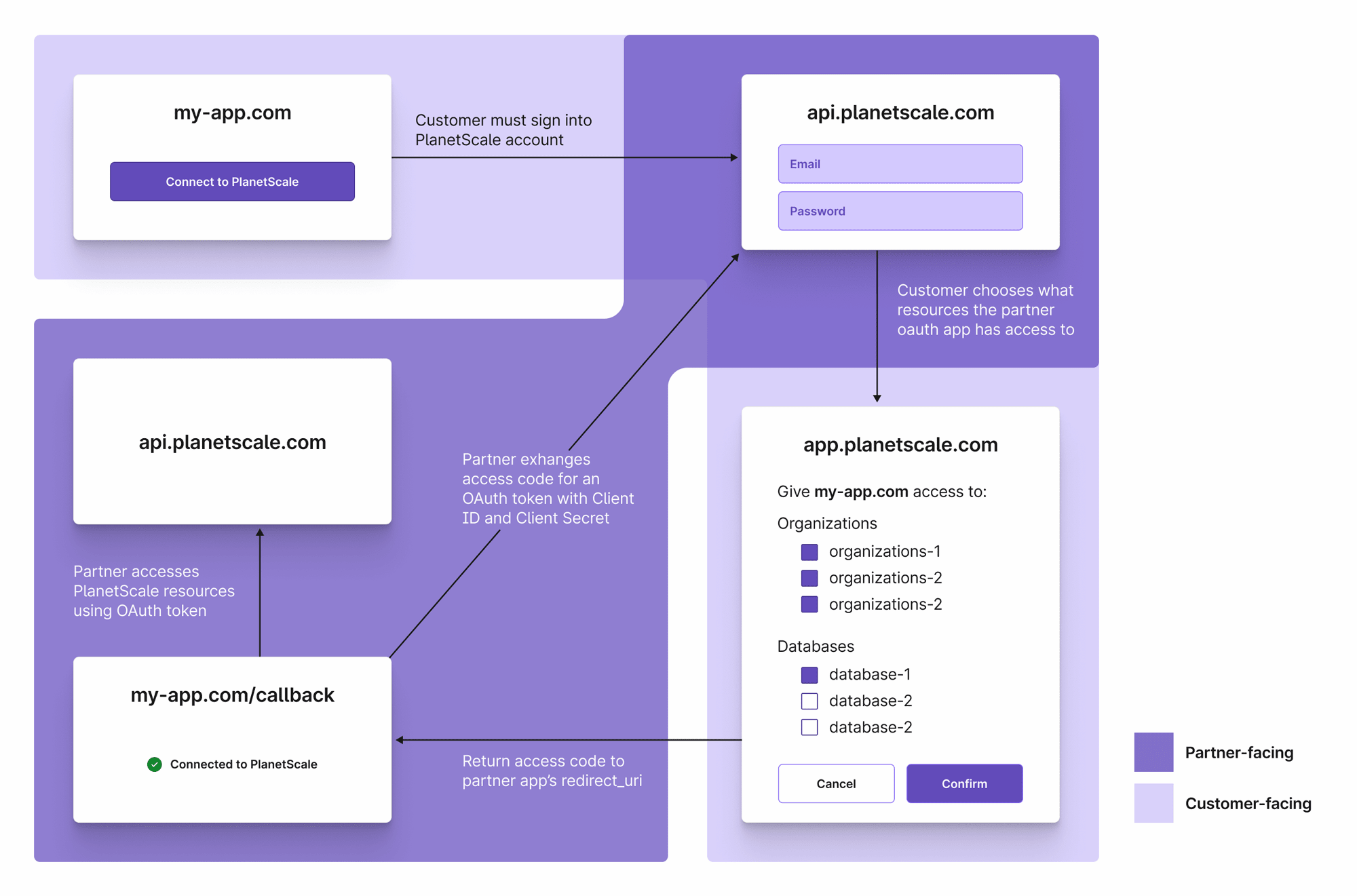

PlanetScale’s OAuth implementation supports the Authorization Code grant type. The following diagram walks through the flow.

0. Prerequisites

You must have created an OAuth application in PlanetScale (see step 1 above) and saved your:

• Client ID: Your OAuth application’s client ID
• Client Secret: Your OAuth application’s client secret
• Redirect URI: The callback URL for your application

These credentials will be used to exchange authorization codes for access tokens.

1. User authorizes your OAuth application on their account

Your application should direct your users to the PlanetScale authorization page (see URL below) so that they can grant your application access to their PlanetScale account:

Text

http://app.planetscale.com/oauth/authorize?client_id=CLIENT_ID&redirect_uri=REDIRECT_URI&state=STATE

Query parameters:

client_id · string · required

Your OAuth application’s client id

redirect_uri · string · required

The full URL PlanetScale should redirect users on completion of the authorization flow, also known as the callback URL

state · string

You may also optionally pass a state parameter, which exists to prevent third-party attacks. Pass a random string, and PlanetScale will return it in step 2. Compare to ensure the request came from your application.

2. The authorization code returns to your application

Upon authorization, PlanetScale will redirect the user to your redirect_uri with an authorization code in the query parameters. The authorization code is only good for one use. It will look like the following URL:

https://my-redirect-uri.com?code=AUTHORIZATION_CODE&state=STATE

Query parameters:

code · string

An authorization code to be exchanged for an access token

state · string

Compare with the original state parameter to ensure they match. Abort the process if they do not because the request may have come from a third party. Only present if you provided one in step 1.

3a. Exchange authorization code for an OAuth token

Your application can now exchange the authorization code for an access token.

POST

https://auth.planetscale.com/oauth/token?client_id=CLIENT_ID&client_secret=CLIENT_SECRET&code=CODE&grant_type=authorization_code&redirect_uri=REDIRECT_URI

The POST request will need the following:

Query parameters:

client_id · string · required

Your OAuth application’s client ID

client_secret · string · required

Your OAuth application’s client secret

code · string · required

The code located in the query parameters of the previous step

grant_type · string · required

Set to authorization_code

redirect_uri · string · required

The full URL PlanetScale should redirect users on completion of the authorization flow, also known as the callback URL

The response will look similar to the following:

JSON

{
  "access_token": "pscale_oauth_8zO_rNQCct1Uj8zkTWLh3kgwAqg8UabGIc43D2eINvo",
  "token_type": "Bearer",
  "expires_in": 2592000,
  "refresh_token": "pscale_oauth_refresh_W_zjmZ1a14sczj15bxJdsW_kiv063OrHG4CBh0IXR9M",
  "scope": "read_user read_databases"
}

access_token · string

Your OAuth access token. Use this in the Authorization: Bearer <access_token> header to make API calls on behalf of the user.

token_type · string

Will always be “Bearer”

expires_in · integer

The number of seconds until the access token expires

refresh_token · string

A refresh token that can refresh your access token when it expires. See step 3b for more info.

scope · string

Space-separated list of scopes granted to this token

You will need the access_token to make API calls on behalf of the user using Bearer authentication.

3b. Refreshing an OAuth token

When an OAuth token expires, you can refresh it:

POST

https://auth.planetscale.com/oauth/token?client_id=CLIENT_ID&client_secret=CLIENT_SECRET&grant_type=refresh_token&refresh_token=REFRESH_TOKEN

The POST request will need the following:

Query parameters:

client_id · string · required

Your OAuth application’s client ID

client_secret · string · required

Your OAuth application’s client secret

refresh_token · string · required

The refresh token sent in the initial token response in step 3a

grant_type · string · required

Set to refresh_token

The response will look similar to the response in 3a.

4. Using the OAuth token

Now your application can make requests to the PlanetScale API on behalf of the user. To make requests to the API, add the access_token in the Authorization header as a Bearer token in your HTTP API request using the following format:

Text

Authorization: Bearer <ACCESS_TOKEN>

Here is a cURL example:

cURL

curl --request GET 'https://api.planetscale.com/v1/organizations' \
--header 'Authorization: Bearer <ACCESS_TOKEN>'
